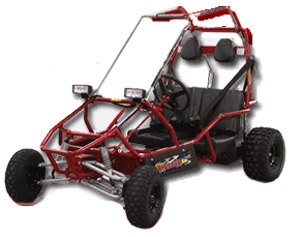

2005 Manco "Intruder II"
Model Number 617C
M.S.R.P: $1,649*
www.mancoprod.com
*Subject to dealer prep, setup and freight.
Target Market: 12 yrs. +
Engine: Subaru
Type: 7.0 HP Air cooled, 4-cycle, OHV/OHC
Displacement: 211cc
Power (BHP @ RPM): 7.0 @ 4000
Torque: 10.26 @ 2400
Starting System: Pull recoil with manual choke
Fuel Capacity: .95 gallons
Oil Capacity: 20 oz.
Spark Plugs: Champion RL86C
NGK BR6HS
Transmission Type: Torque Converter
Drive: Dual wheel drive
Chain Size: #420 1/2" Pitch
Tires & Wheels
Front/Rear Knobby:145 x 7 x 6" / 18 x 9.5 x 8"
Frame Type - heavy gauge - jig welded
1.25" HREW Steel
Rear axle: 7/8" hardened alloy steel
Finish: Baked Powder Coat
Advanced Geometry Suspension
Front: Dual A-arm, Coil-over shocks
Rear: Swingarm, Coil-over shocks
Brakes
Type: Foot Operated 6" disc with parking brake
Performance
Maximum Speed (Approx)
30-32 mph
Fuel Consumption (Approx) 30-50 mpg
Terrain: Hills, slopes, grass, mud and sand
Special Features
Dual Seat
Fingertip slide adjustable
Restraint System
Dual 3 point retractable safety belts
Engine Stop Switch/Dual
On engine and in steering wheel
Brush Bars: 1.25" HREW Steel
Safety: Whip Flag
Dimensions
Curb Weight: 346 lbs.
Maximum Rider Weight: 350 lbs.
Gross Vehicle Weight: 696 lbs.
Vehicle Overall Length: 89.5"
Width: 50.75"
Height:59.5"
Seat to Pedals: 35"-39"
Wheelbase: 71"
Ground Clearance: 12"
|
|
|
|
|
Manco Warranty
Safety Statement
Manco karts comply with all standards for kart safety and performance per ASTM: F1928-99, F2011-00.
Safety Tip: Be a responsible rider and always be aware of others
Always wear a helmet, eye protection, and other protective clothing.
|
|
|
|
|
|
|
